20Te
(& 40Te) Subsea Winch
Eliminates the need for seabed anchoring or piles
Utilizes its gravity base weight for secure positioning to reduce vessel and rig installation time and costs

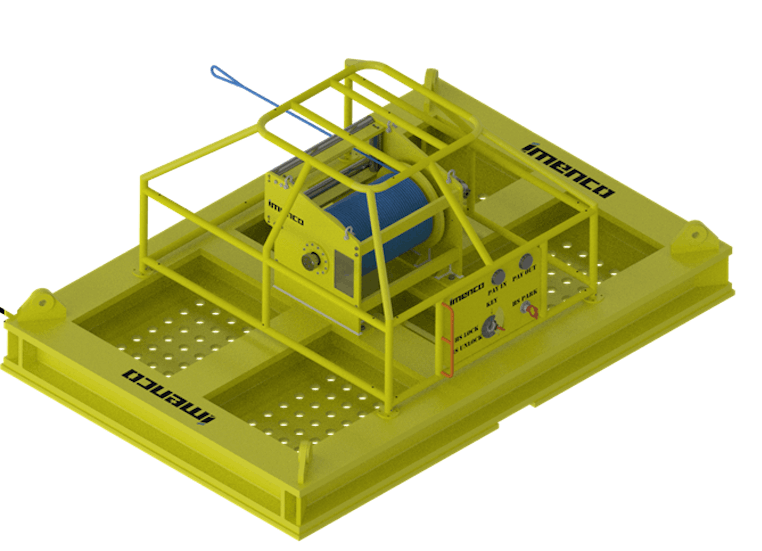

20Te (& 40Te) Subsea Winch
Subsea Winch for efficient tugging, dragging, and wellhead tethering operations
Introduction
Imenco is developing an innovative Subsea Winch designed for efficient tugging, dragging, and wellhead tethering operations. This ground-breaking system eliminates the need for seabed anchoring or piles, utilizing its gravity base weight for secure positioning. This feature significantly reduces vessel and rig installation time and costs.
Our standard Subsea Winch offers a Safe Working Load (SWL) of 20 tons, with the flexibility to be upsized or downsized to meet specific project requirements. Engineered for operational ease, the winch is both ROV and diver friendly and can be directly operated via a work-class ROV or a hydraulic downline.
Key features include a Zero Leak Ø55mm Valve Stab Interface, a 500-meter drum capacity, and self-contained cathodic protection for up to one year of submersion. The system also boasts a fully depth-compensated winch gearbox and hydraulic motor, a vented gravity base, subsea specification paint, and an overall design prioritizing ease of use for both robotic and human intervention.
Specifications
Features
- Zero Leak Ø55mm Valve Stab Interface
- 500-meter drum capacity
- Self-contained cathodic protection
- Depth-compensated winch gearbox
- Hydraulic motor

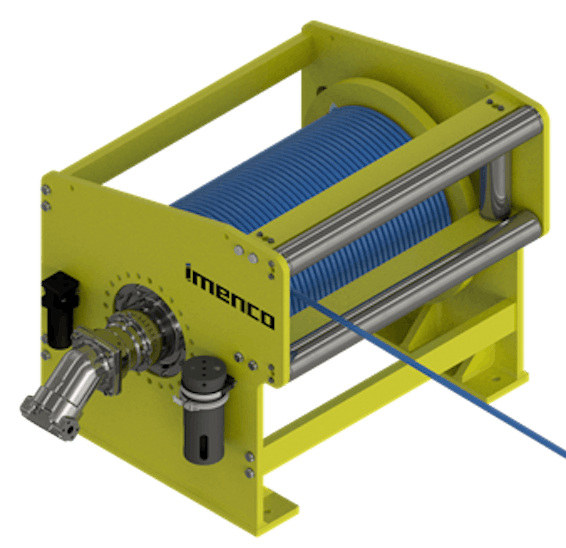

Products within 20Te (& 40Te) Subsea Winch
The winch is designed to withstand rough operations in any offshore environment.
