Anchor Releasable
Guidepost
- GPAR

Features

  • The Imenco Anchor Releasable Guidepost GPAR can be delivered with different diameters, lengths and strength according to client specifications
  • Suitable with Imenco Guidepost Extension

Anchor Releasable Guidepost – GPAR

Introduction

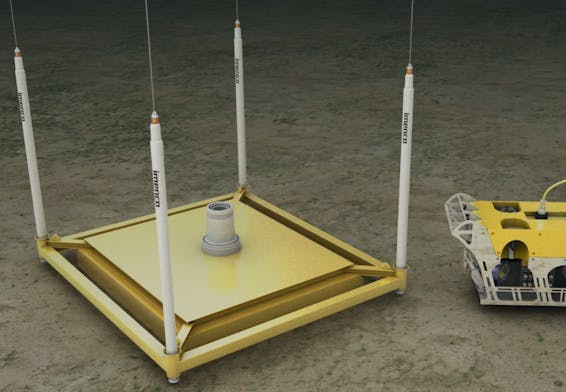

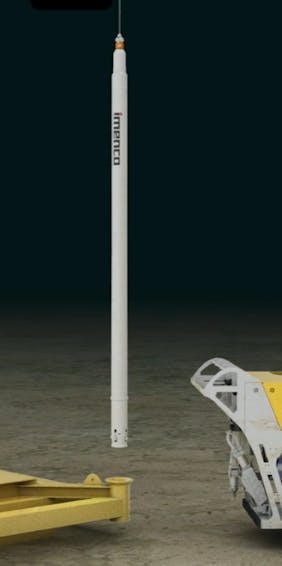

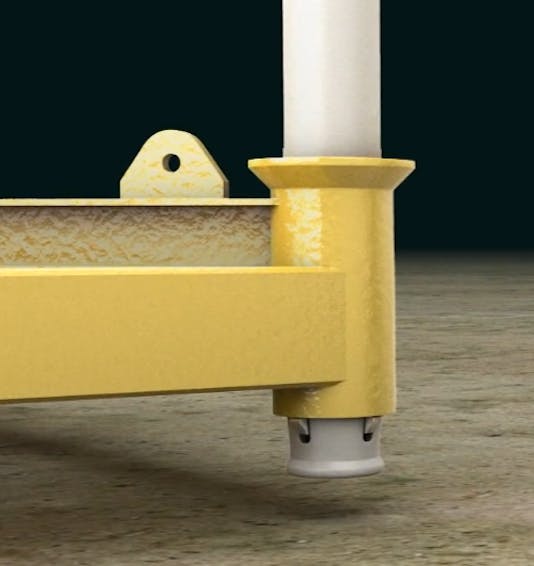

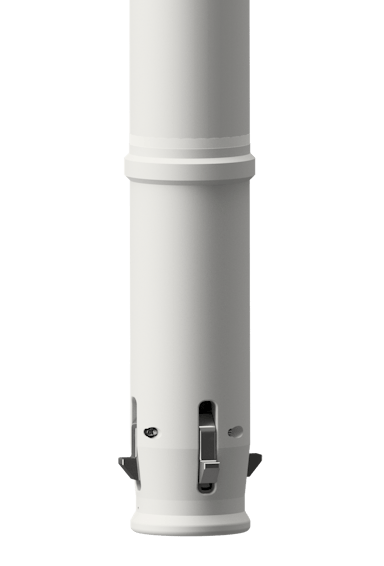

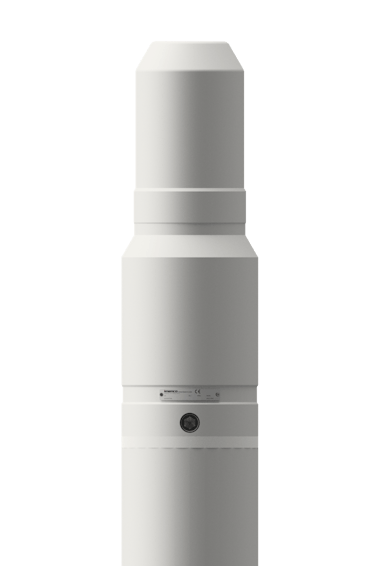

The Imenco Anchor Releasable Guidepost, GPAR, can be used on subsea structures where there will be no, or very limited, side access to the post top or the post receptacle. This post is handled using the guideline with extended Lifting Anchor. The extended anchor engages an internal shoulder connected to a release rod operating the post’s locking dogs. The post locking mechanism is of same proven design as used for the Top Releasable Guidepost, GPTR, and will automatically engage the post receptacle when the post is fully landed, and the guideline is slackened. For normal guidewire operations, a standard guidewire anchor will be used. The post is supplied with GPE profiled post top to enable installation of Imenco Guidepost Extension.

The Imenco Anchor Releasable Guideposts are made from carbon steel, sandblasted and painted to meet offshore/ client standards. They are supplied with full documentation package, including CoC, manufacturing record book, test reports, user manual and maintenance instructions.

The Imenco Anchor Releasable Guidepost can be delivered with different diameters, lengths and strength according to client specifications.

For more details see GPAR product sheet. Special customized designs are available on request.



Product sheet - Anchor Releasable Guidepost - GPAR 3D-model Imenco GPAR-8-77-L6700 (Step)

Products within Anchor Releasable Guidepost – GPAR

3-1425_outline_2_Cropped

Suitable for Imenco GWA 22’ and GWA 22’S Guidewire Anchors and LA6Te Lifting Anchor Suitable for use with Guidepost Extension

116222_GPE_M4_1_Cropped_2

The Imenco Guidepost Extension GPE 8 M4 is used for installation on top of a guidepost for temporary increase of the guiding length
