Skidding Unit with Turntable
The turntable unit is mounted onto our standard skidding pallet
https://youtu.be/GhTHNEzBzeo
Skidding Unit with Turntable
Introduction

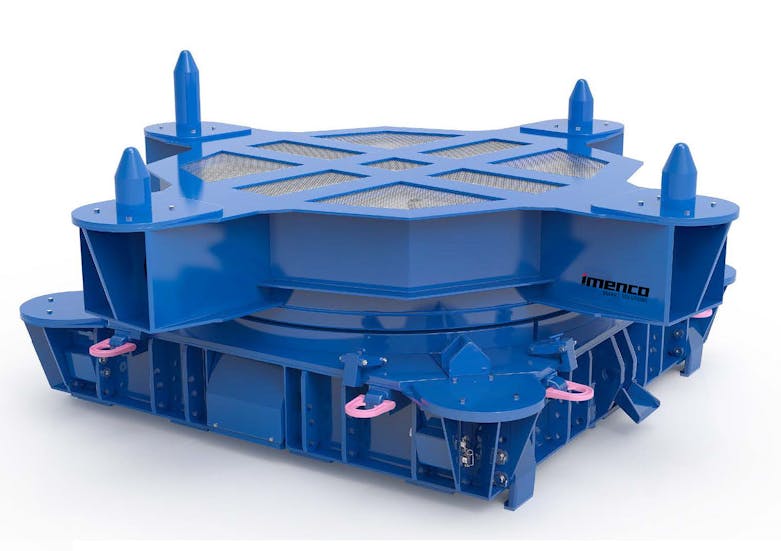

The Skidding unit with turntable is part of the skidding system delivered to Transocean Leader. The turntable unit is mounted onto our standard skidding pallet. By use of a hydraulic swivel and gear rim the turntable can rotate 360°.
Product sheet - Skidding systemSpecifications
- Load capacity: 100 mT
- Type of skidding method: Push-pull cylinders with claws / wedges for slots
- Control system: Hydraulic Control Panel
- Rotation turntable: 360°
- Cylinder speed: 2 m/min
- Skidding speed: 1 m/min
