Skidding Unit with XT Guides

Introduction

For Transocean Leader we have designed and fabricated a skidding system that is fitted to existing skidding beams.

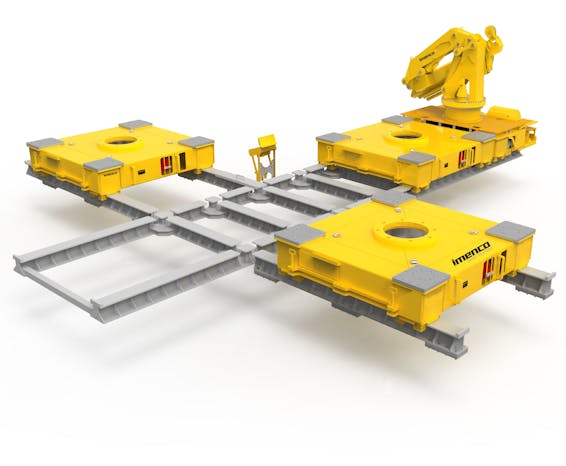

The Skidding Unit with XT Guides system is used for handling of X-mas tree stack and includes several pallets, skidding unit with turntable and skidding unit with knuckle boom crane.

Product sheet - Skidding system

Specifications

  • Load capacity: 100 mT
  • Type of skidding method: Push-pull cylinders with claws / wedges for slots
  • Control system: Hydraulic Control Panel
  • Cylinder speed: 2 m/min
  • Skidding speed: 1 m/min
