Snapper™ Weak Link
Provides overload protection to your lifting operations
Snapper™ Weak Link
Emergency release at a predetermined shear value
Introduction
For all situations where a controlled emergency release point is required, the Imenco Snapper™ Weak Link range provides the perfect solution in ensuring a high safety standard for your lifting operations.

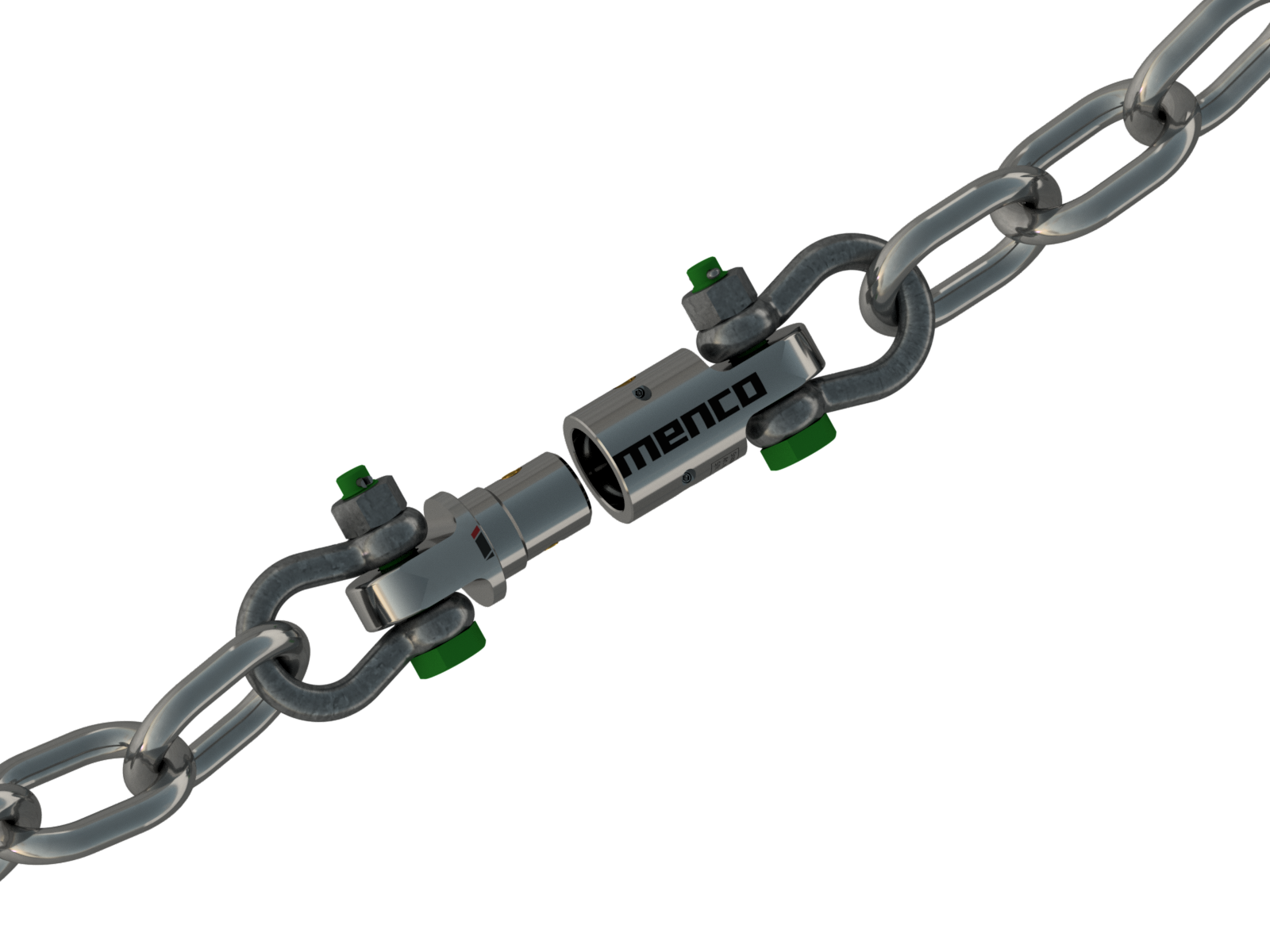

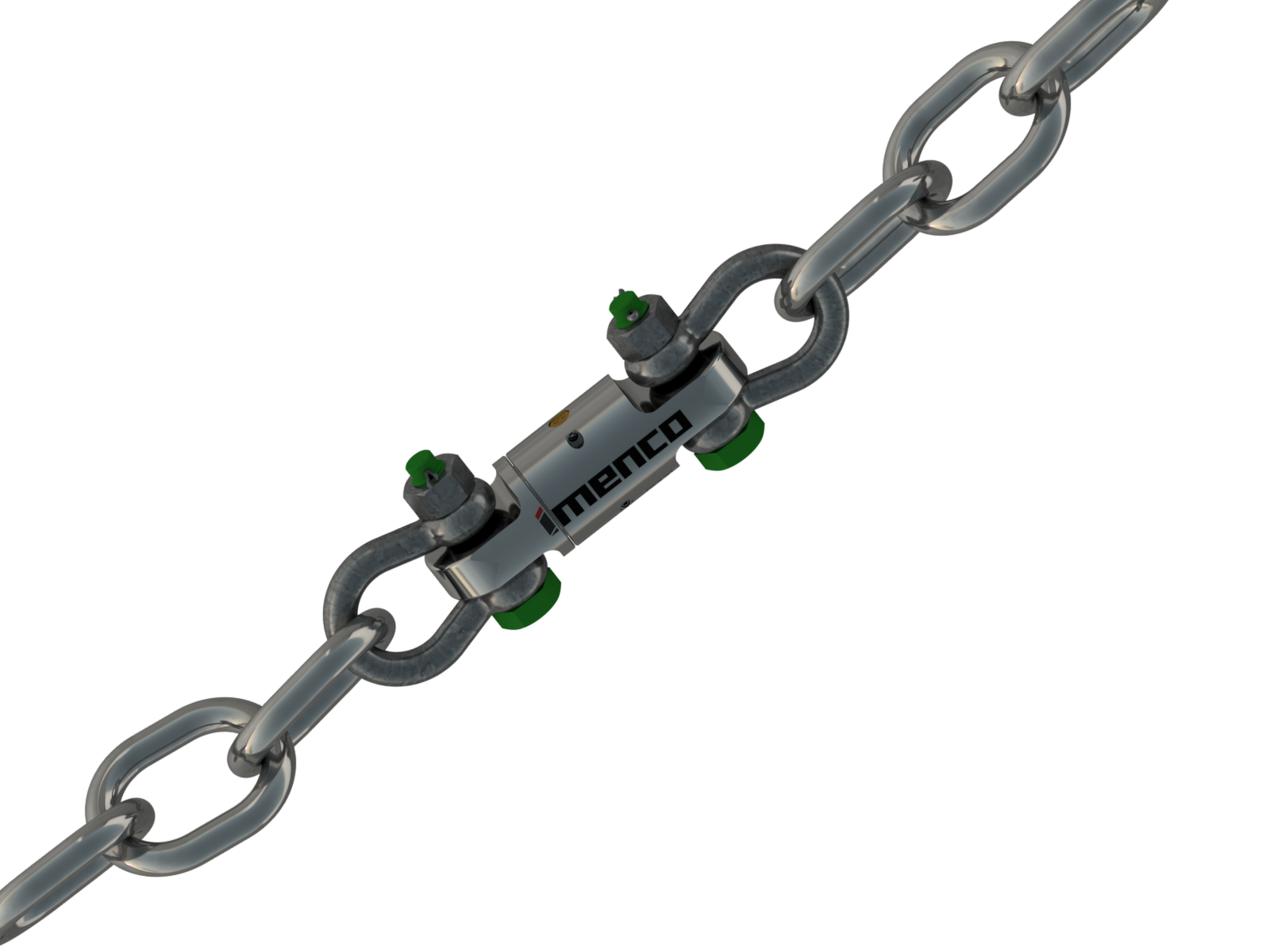

The Snapper™ Weak Link is essentially a link introduced to a lifting chain, which is designed to ensure that an emergency release breaking point/value is included in the chain.
This ensures that other components/elements in the chain are protected, i.e.: costly equipment, and/or where safety due to unforeseen breakage is a factor.
This is achieved by the use of a “shear pin” with a pre-determined shear value.
** See table under Specifications below for available standard shear pin range for the different weak link types.
Product sheet - Snapper Weak Link
Specifications
The Snapper™ Weak Link range includes three standard sizes:
- Snapper™ 6,5 – fits standard 6,5Te shackle
- Snapper™ 12 – fits standard 12Te shackle
- Snapper™ 35 – fits standard 35Te shackle
With a suitable value Shearpin fitted, a Snapper™ Weak Link can also be used in standard lifting operations, where desired.
